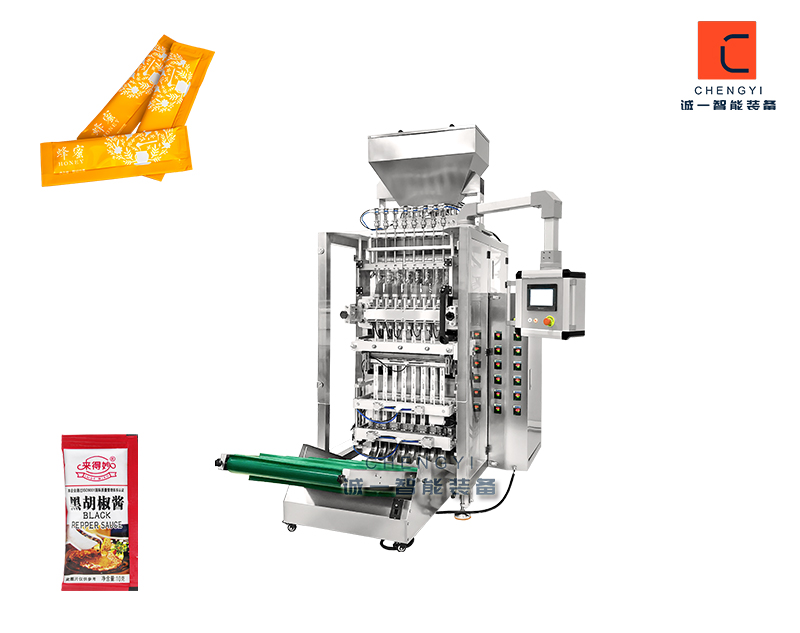

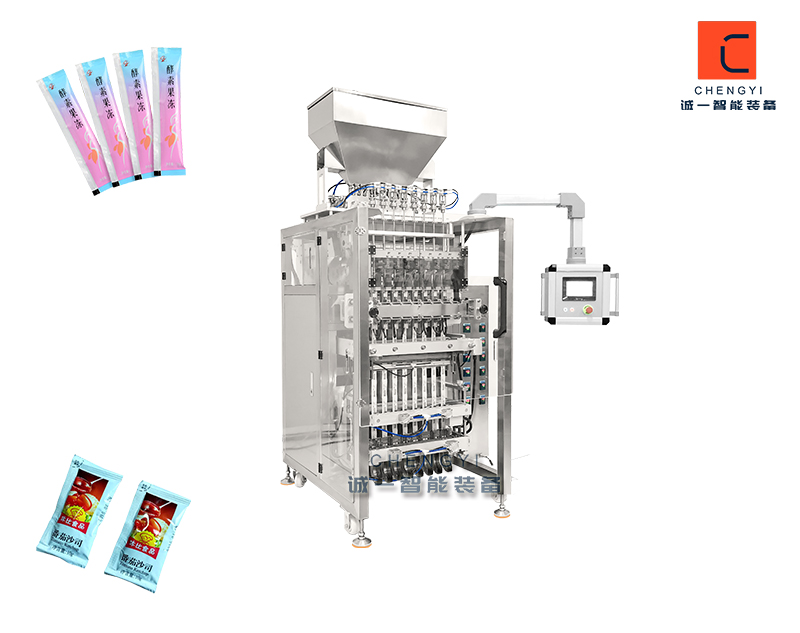

Multi row three side sealing liquid packaging machine

Product model：CY300Y/CY600Y/CY900Y

Full automatic multi row three side sealing liquid packaging machine is applicable to the full-automatic soft packaging
of liquid, paste, sauce and other products in medicine, food, daily chemicals, health products, pesticides, cosmetics and other industriesSuch as mouthwash, honey, cosmetics, soy sauce, oil, fruit juice, drinks, liquid medicine, etc

We can help you find the goods you want by phone

Consult immediately 18676947539
Video
Sample bag
Parameters
Model CY300Y CY600Y CY900Y
Lanes 2-4 lanes 3-10 lanes 4-16 lanes
Packing speed  30--50 Bags/Lane/Min
Bag width 17-75mm 17-100mm 17-110mm
Bag length 50-180mm
Film width Max.300mm Max.600mm Max.900mm
Measuring Method Piston pump/Peristaltis pump/Ceramic pump/Rotarc pump
Sealing Type  3 side sealing
Cutting Type Straight cutting/Zig zag cutting/Round cutting/Die-cut
Power supply 50HZ/AC220V/3.5kw 50HZ/AC220V/5.5kw 50HZ/AC220V/7.5kw
Air consumption 0.8 MPA 0.8m3/min
Dimension 1900*1440*2500mm 1860*1750*2800mm 1860*2050*2860mm
Weight 950kg 1200kg 1400kg
Details

distribution box

Slitting system

Horizontal and vertical sealing systems (1)

Horizontal and vertical sealing systems (2)

material bucket

material bucket1

Bucket and piston pump metering system
