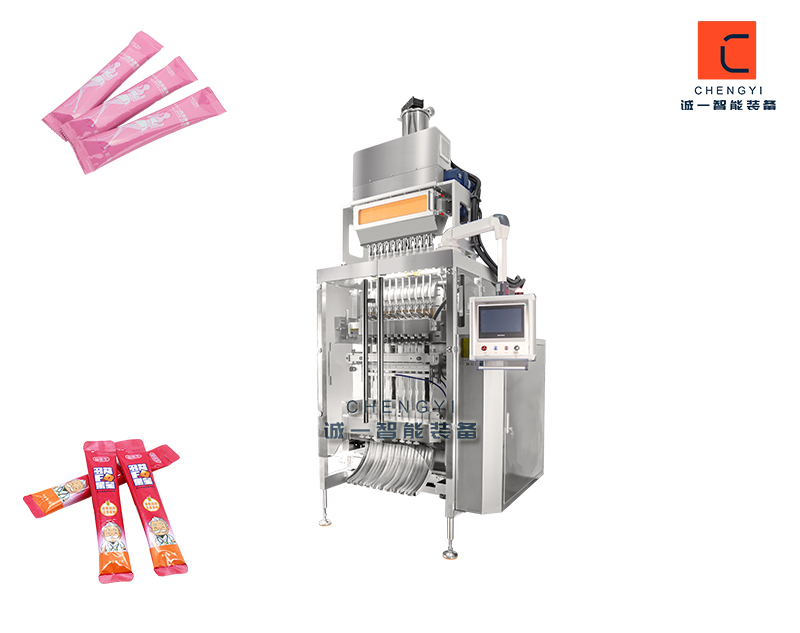

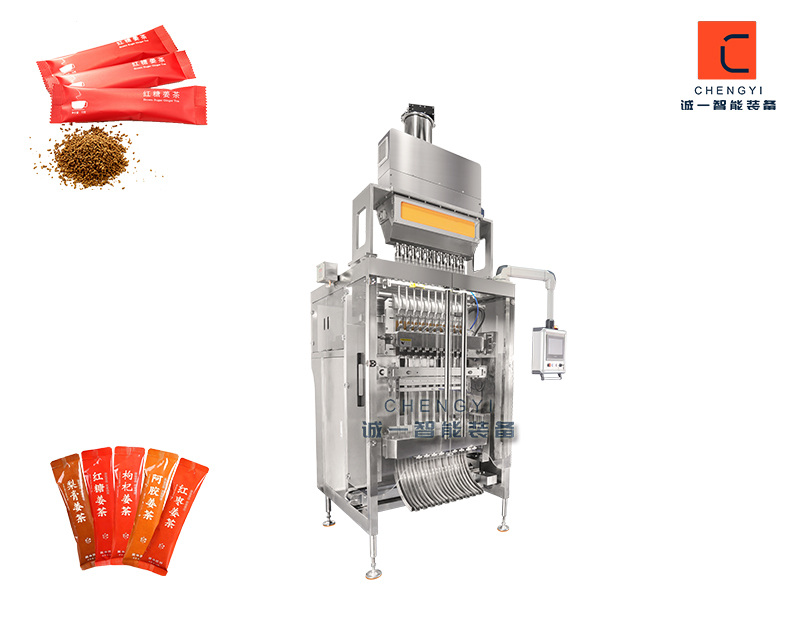

Solid beverage packaging machine

Product model：CY300BF/CY600BF/CY900BF

　　Lanes number：2-16 lanes

　　Bag size：L：50-180mm W：20-105mm

　　Film width&thickness：Max.300-900mm,0.07--0.1mm

　　Capacity：Max.20-40cycle/min/lane

　　Measuring Method：long auger、short auger、short auger with cup

　　Power supply：50HZ/AC220V/380V/3.5-7.5kw

　　The solid beverage packaging machine is a multi-lane packaging machine designed for packaging solid beverages, brewed drinks, small molecular peptides, and vitamin drinks. Equipped with intelligent computer control, it boasts fast packaging speed, high precision, and minimal error. It can automatically complete tasks such as quantitative feeding, bag making, filling, counting, sealing, cutting, and outputting finished products.

We can help you find the goods you want by phone

Consult immediately 18676947539
Video presentation

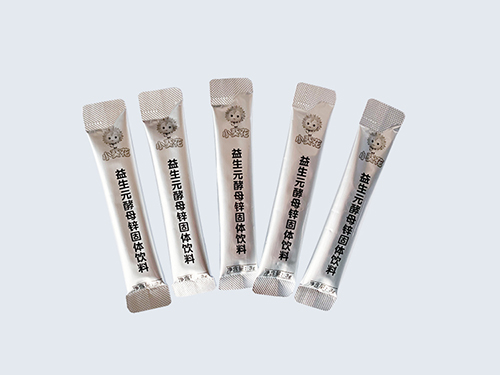

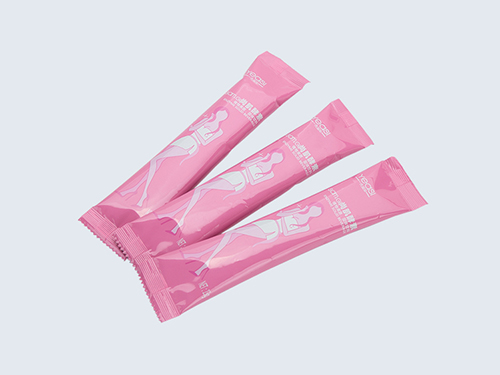

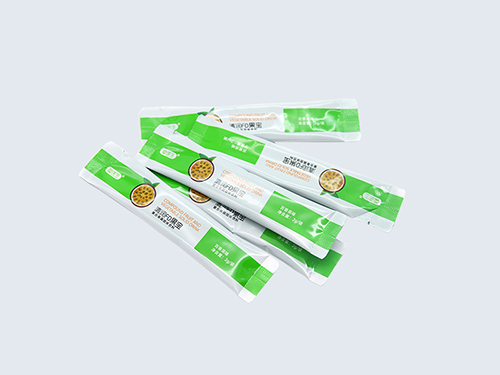

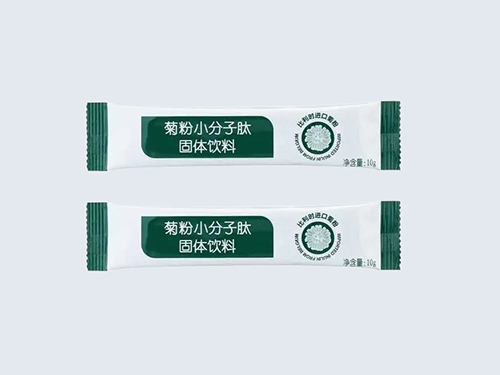

Packaging sample bag
Machine parameters
Model CY300BF CY600BF CY900BF
Lanes 2-4 lanes 3-10 lanes 4-16 lane
Packing speed 20--40 Bags/Lane/Min
Bag width 20-70mm 20-95mm 20-105mm
Bag length 50-180mm
Film width Max.300mm Max.600mm Max.900mm
Measuring Long auger/Short auger/Short auger with cup
Sealing Type Back seal
Cutting Type Straight cutting/Zig zag cutting/Round cutting/Die-cut
Power supply 50HZ/AC220V/3.5kw 50HZ/AC220V/5.5kw 50HZ/AC220V/7.5kw
Air consumption 0.8 MPA 0.8m3/min
Dimension 1900*1440*3130mm 1860*1750*3200mm 1860*2050*3300mm
Weight 900kg 1200kg 1500kg

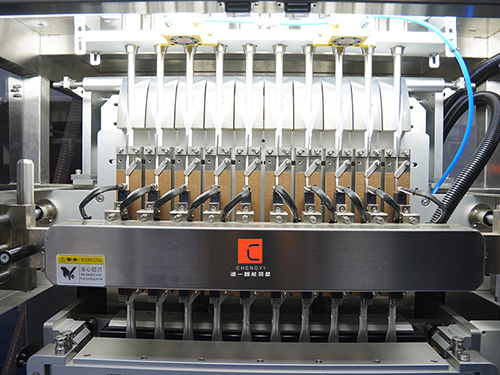

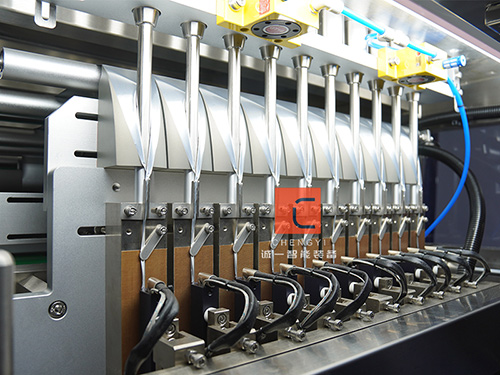

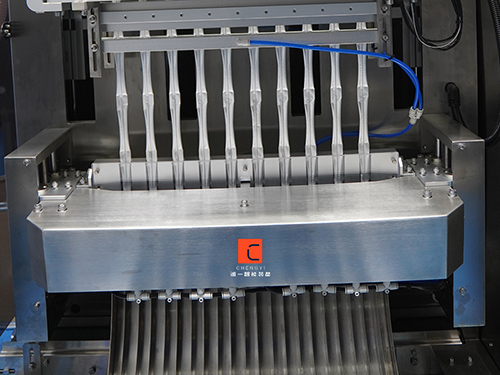

Detail drawing

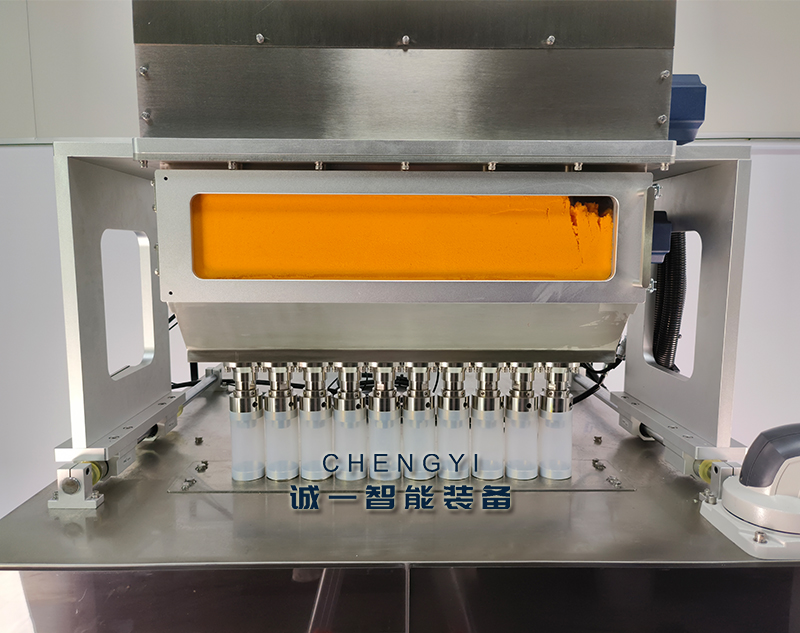

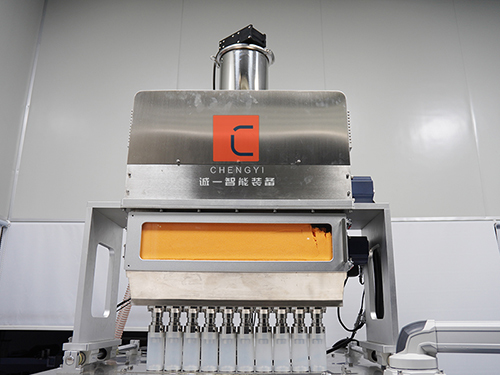

可視化儲(chǔ)料斗

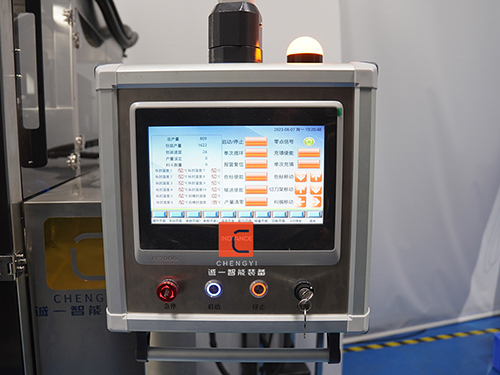

電子觸摸屏

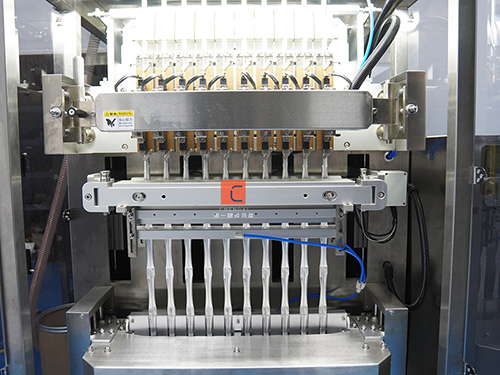

制袋裝置

橫封封口裝置

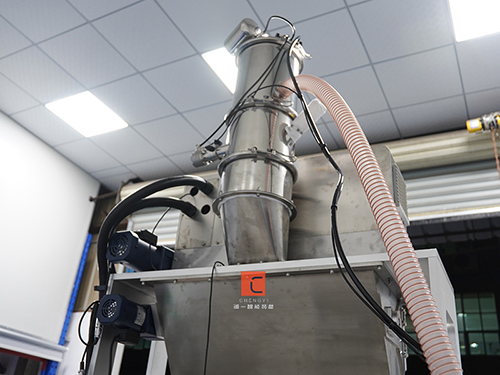

真空上料機(jī)

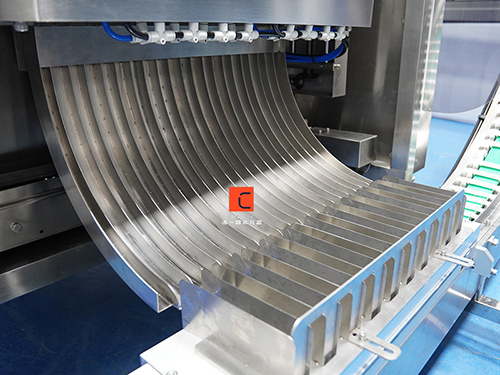

成品出料口

縱封封口裝置

切圓角裝置
