Product model：CY300BY/CY600BY/CY900BY
Lanes：2-16
Bag width：17-105mm
Film width：Max：300-900mm
Sealing Type：Back seal
Packing speed 25-40Bags/Lane/Min
Measuring：Piston pump/Peristaltic pump/Ceramic pump/Rotary pump
Cutting Type：Straight cutting/Zig zag cutting/Round cutting/Die-cut
Bag length：50-180mm
Power Supply：50HZ/220V/3.5KW

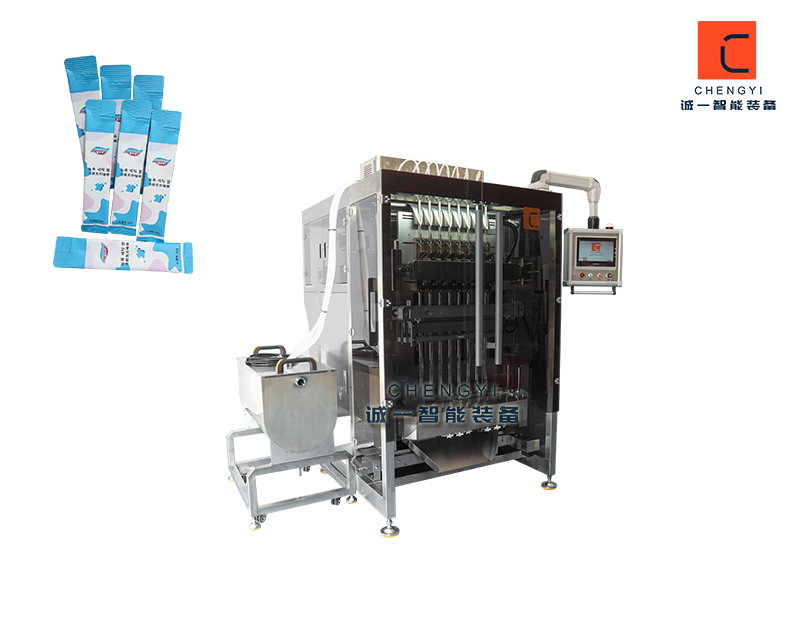

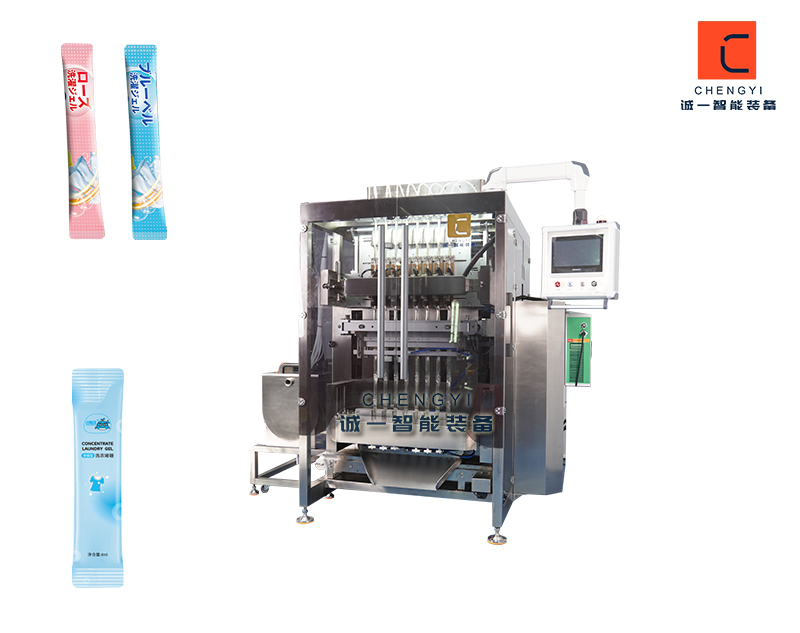

The strip laundry detergent packaging machine is suitable for packaging small bags of laundry detergent, disposable laundry detergent, laundry gel, and strip travel laundry detergent. The bag types include back sealed with rounded corners and back sealed with serrated bags. If other bag types are needed, they can be customized for production.
We can help you find the goods you want by phone
Video
Packaging sample bag
Parameters
| Model | CY300BY | CY600BY | CY900BY | |
| Lanes | 2-4 lanes | 3-10 lanes | 4-16 lanes | |
| Packing speed | 25--40 /Bags/Lane/Min | |||
| Bag width | 17-70mm | 17-95mm | 17-105mm | |
| Bag length | 50-180mm | |||
| Film width | Max.300mm | Max.600mm | Max.900mm | |
| Measuring | Piston pump/Peristaltis pump/Ceramic pump/Rotarc pump | |||
| Sealing Type | Back seal | |||
| Cutting type | Straight cutting/Zig zag cutting/Round cutting/Die-cut | |||
| Power supply | 50HZ/AC220V/3.5kw | 50HZ/AC220V/5.5kw | 50HZ/AC220V/7.5kw | |
| Air consumption | 0.8 MPA 0.8m3/min | |||
| Dimension | 1900*1440*2500mm | 1860*1750*2800mm | 1860*2050*2860mm | |
| Weight | 950kg | 1200kg | 1500kg | |
Detail
Electronic touch screen
Stainless steel storage hopper
Hanging film device
Laser Marking Machine
distribution box
Vertical sealing device
Magnetic pump filling system
