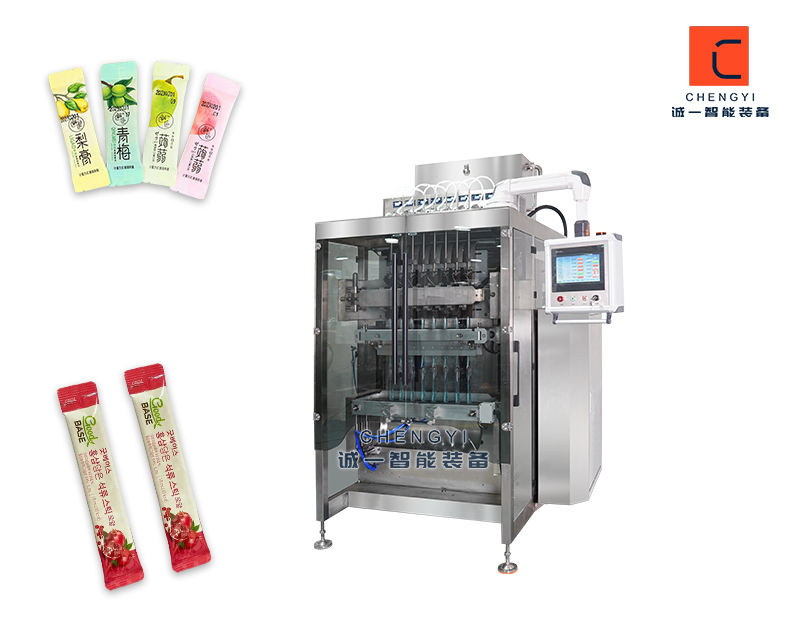

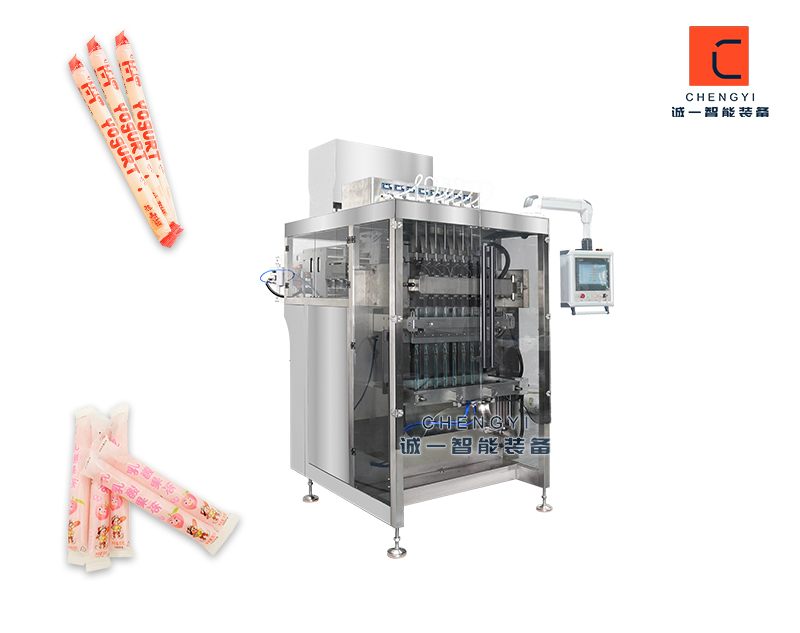

Jelly strip packaging machine

Product model：CY300BY/CY600BY/CY900BY

　　Lanes：2-16

　　Bag width：17-105mm

　　Film width：Max：300-900mm

　　Sealing Type：Back seal

　　Packing speed 25-40Bags/Lane/Min

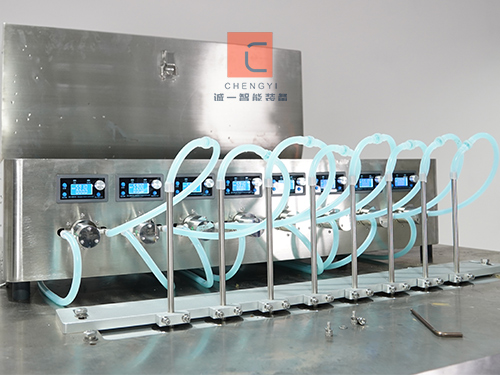

　　Measuring：Piston pump/Peristaltic pump/Ceramic pump/Rotary pump

　　Cutting Type：Straight cutting/Zig zag cutting/Round cutting/Die-cut

　　Bag length：50-180mm

　　Power Supply：50HZ/220V/3.5KW

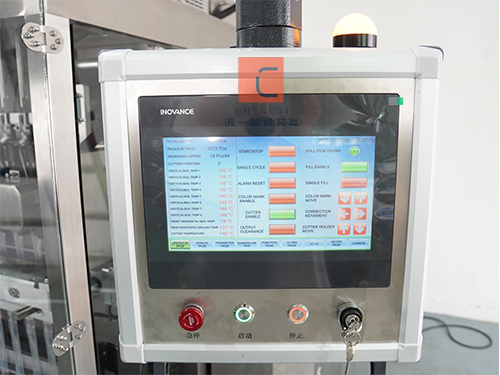

　　Jelly strip packaging machine is a multi column back sealing packaging machine designed for packaging long jelly liquids, jelly strips and other products. The machine adopts PLC and photoelectric control system, and can automatically complete processes such as measuring, bag making, filling, sealing and cutting, and printing dates.

We can help you find the goods you want by phone

Consult immediately 18676947539

Video

Packaging sample bag

Parameters

型號	CY300BY	CY600BY	CY900BY
列數	2-4列	3-10列	4-16列
制袋寬度	17-70mm	17-95mm	17-105mm
膜寬膜厚	最大：300mm，0.07--0.1mm	最大：600mm，0.07--0.1mm	最大：900mm，0.07--0.1mm
制袋長度	50-180mm
包裝速度	每分鐘25--40 /每列
計量方式	活塞泵/蠕動泵/陶瓷泵/轉子泵
封口形式	條狀背封口
切口形式	平口切/鋸齒切/圓角切/異形切
耗氣量	0.8 MPA 0.8m3/min
電源功率	50Hz/AC220V/3.5kw	50Hz/AC220V/5.5kw	50Hz/AC220V/7.5kw
外形尺寸	190014402500mm	186017502800mm	186020502860mm
整機重量	950kg	1200kg	1500kg
